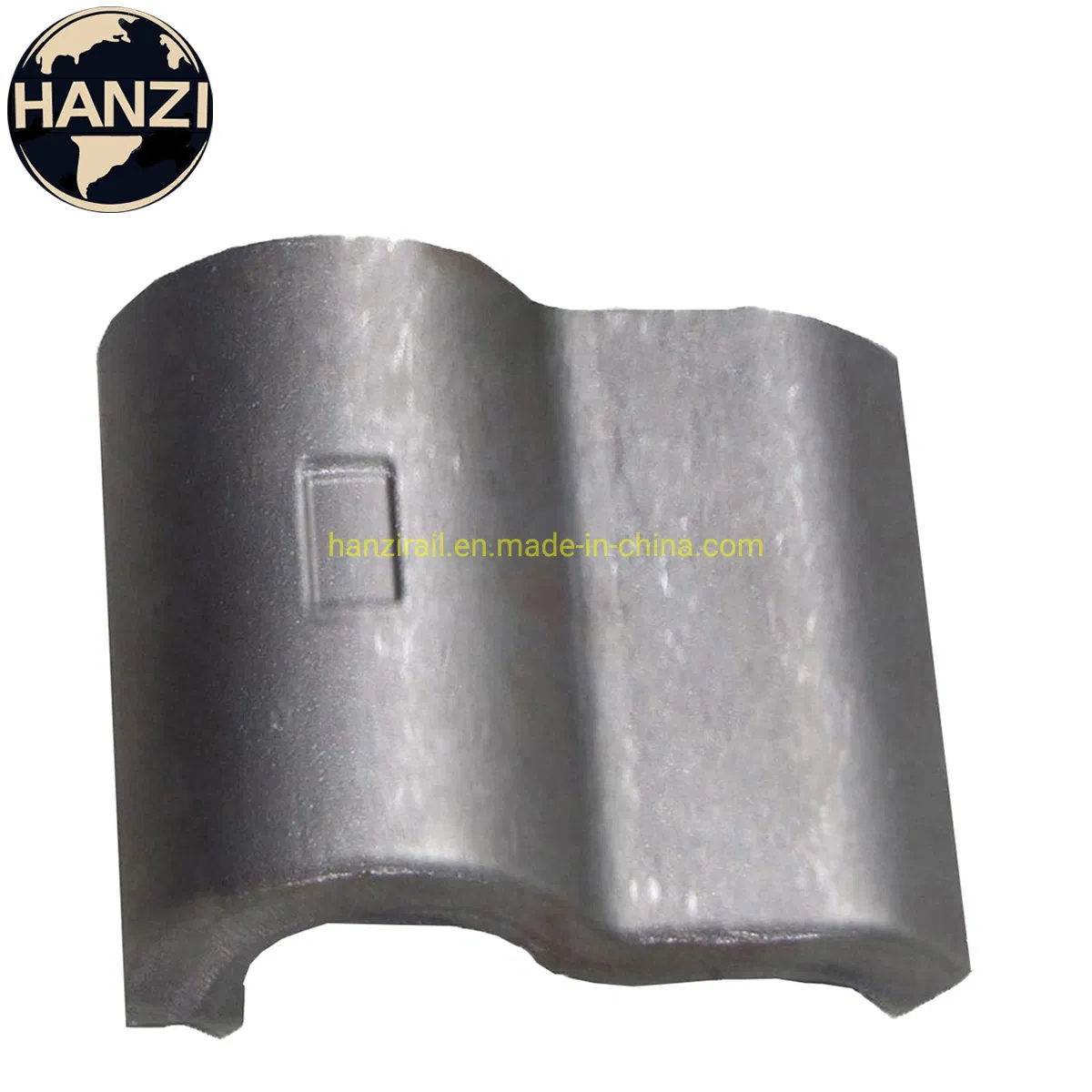

Steel Rail Shoulders Weld on Shoulder for Railway Railroad Building

📊

Basic Information

Model NO.:Rail Shoulder, E2055, E2056

Certification:ISO9001

Type:Shoulder

Product Name:Steel Rail Shoulders Weld on Shoulder for Railway

Surface:Natural

Bolt Grade:5.6

Specification:115RE, 136RE, UIC54, UIC60, 54E1, 60E1

Production Capacity:500,000PCS/Month

🛠️

Product Description

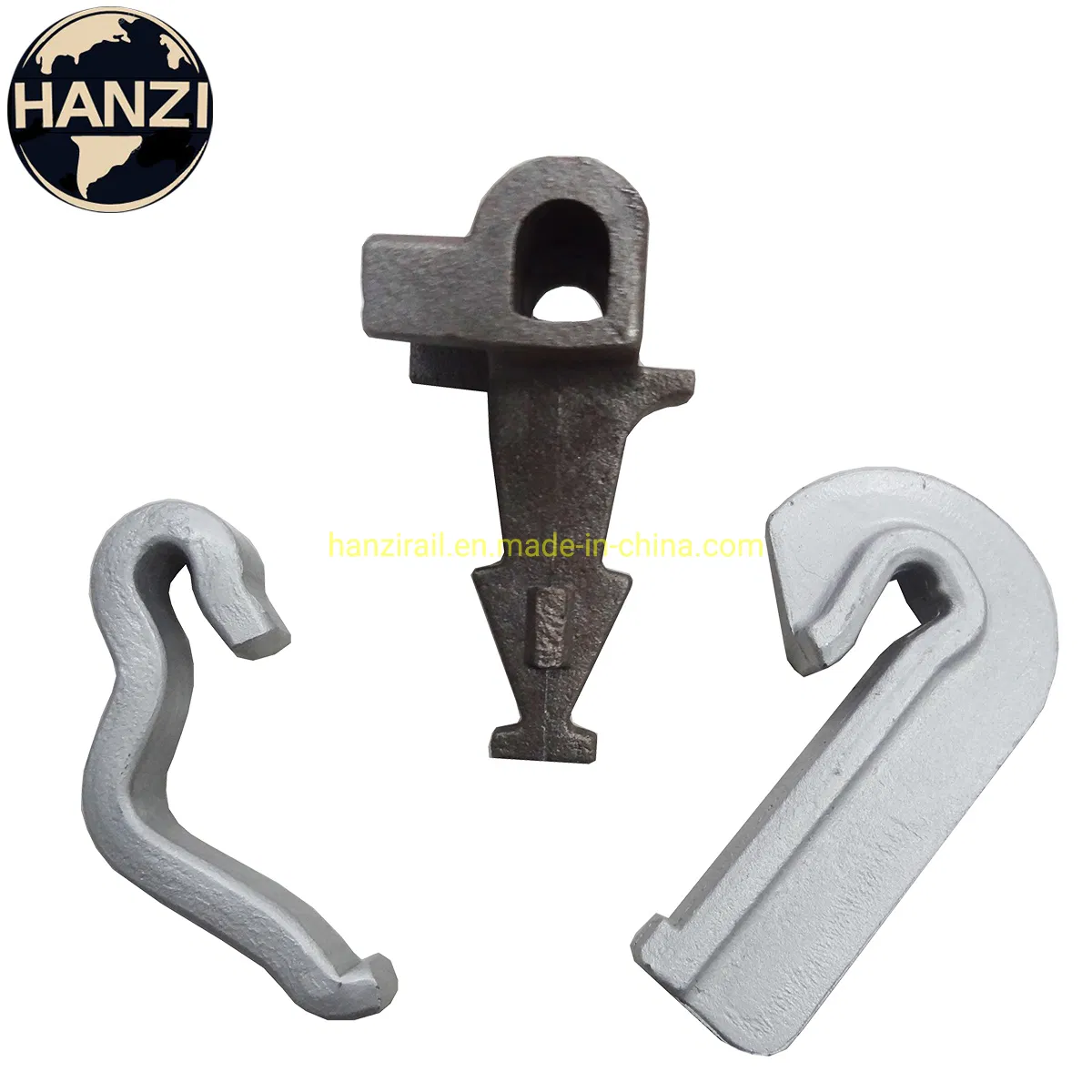

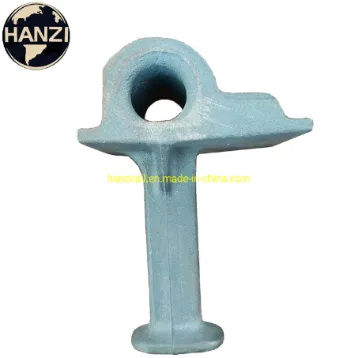

Cast-in Rail Shoulders: Prefabricated pieces in concrete sleepers, either single or double, used to secure elastic rails within a fastening system. These are pre-embedded in concrete sleepers and work with elastic clips to fix the rails securely.

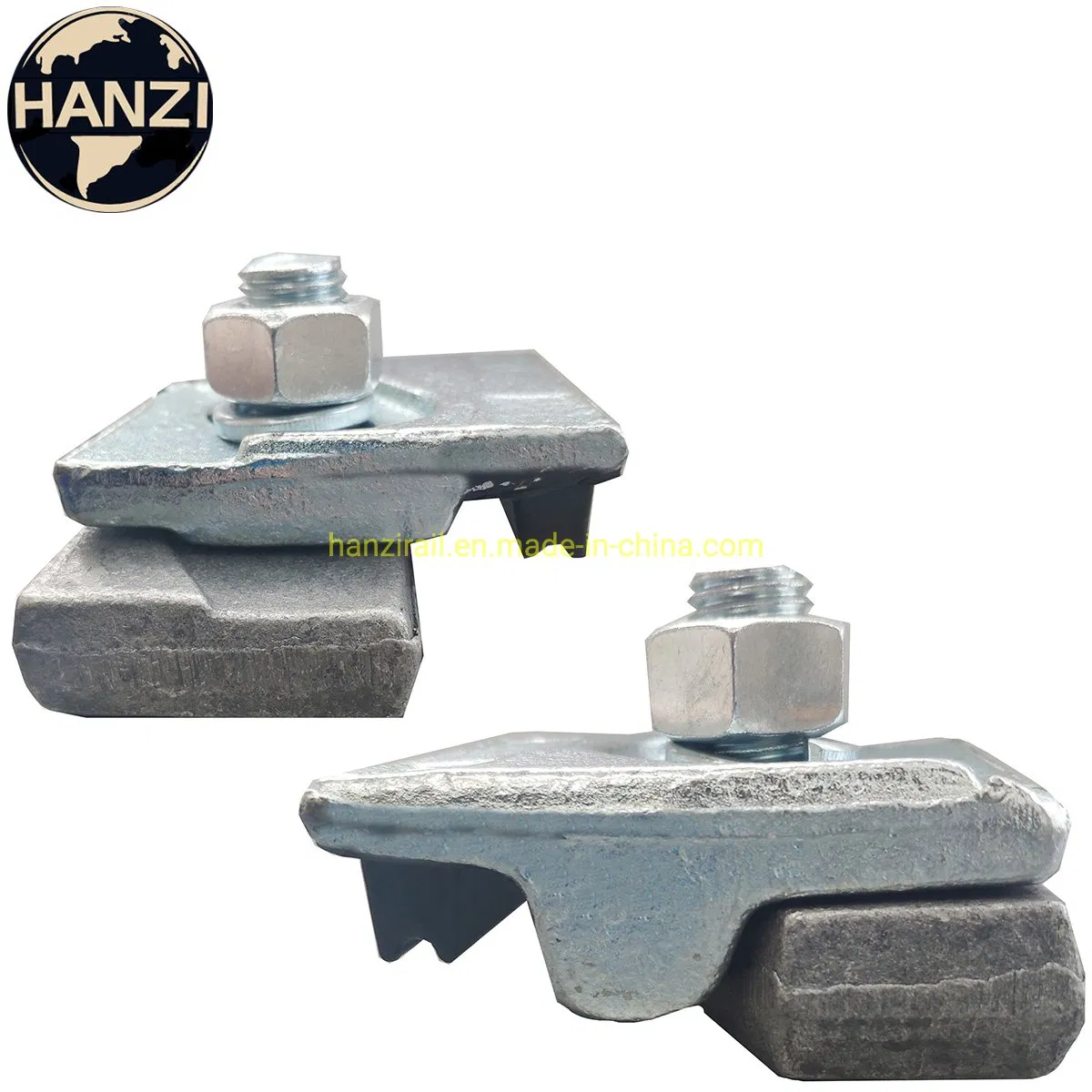

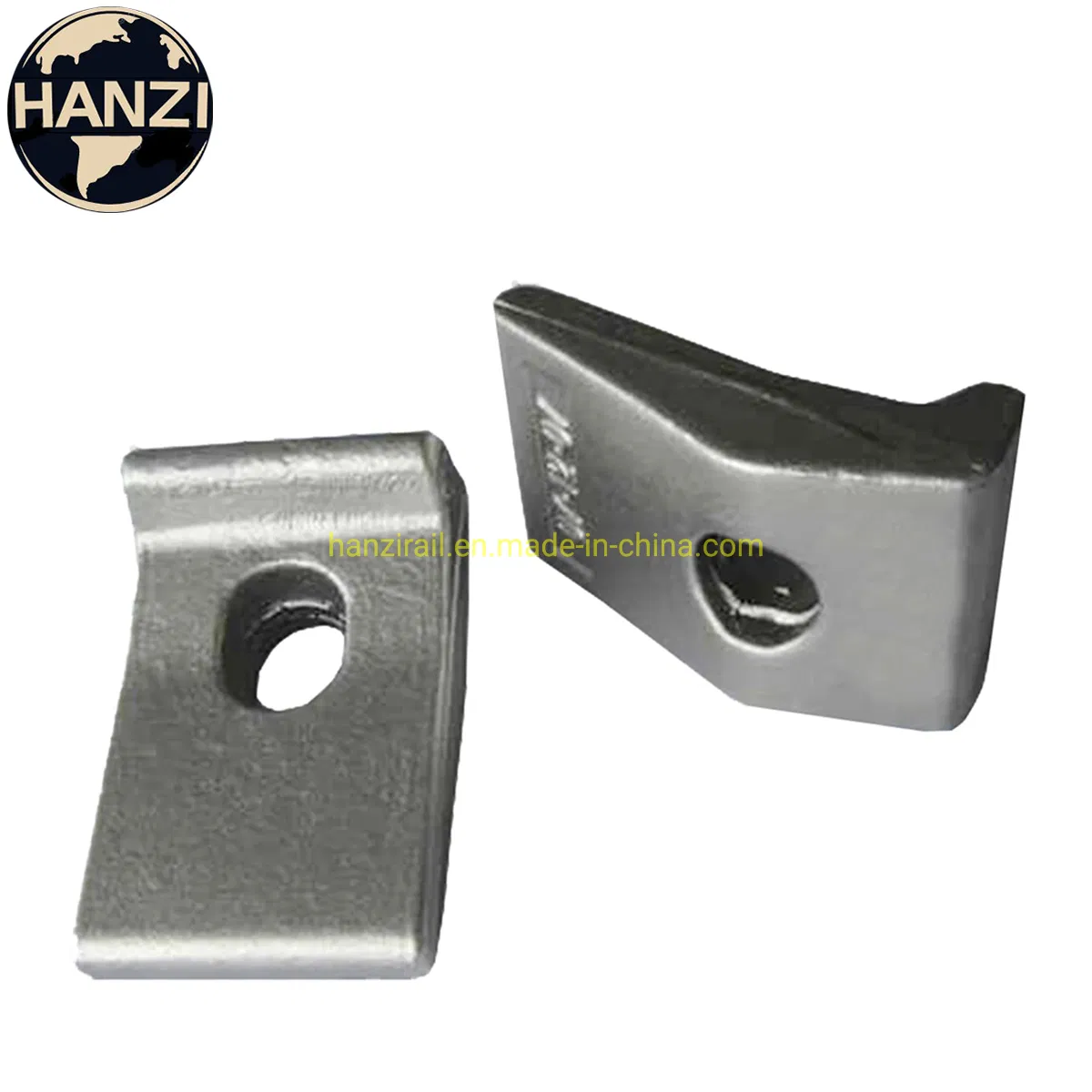

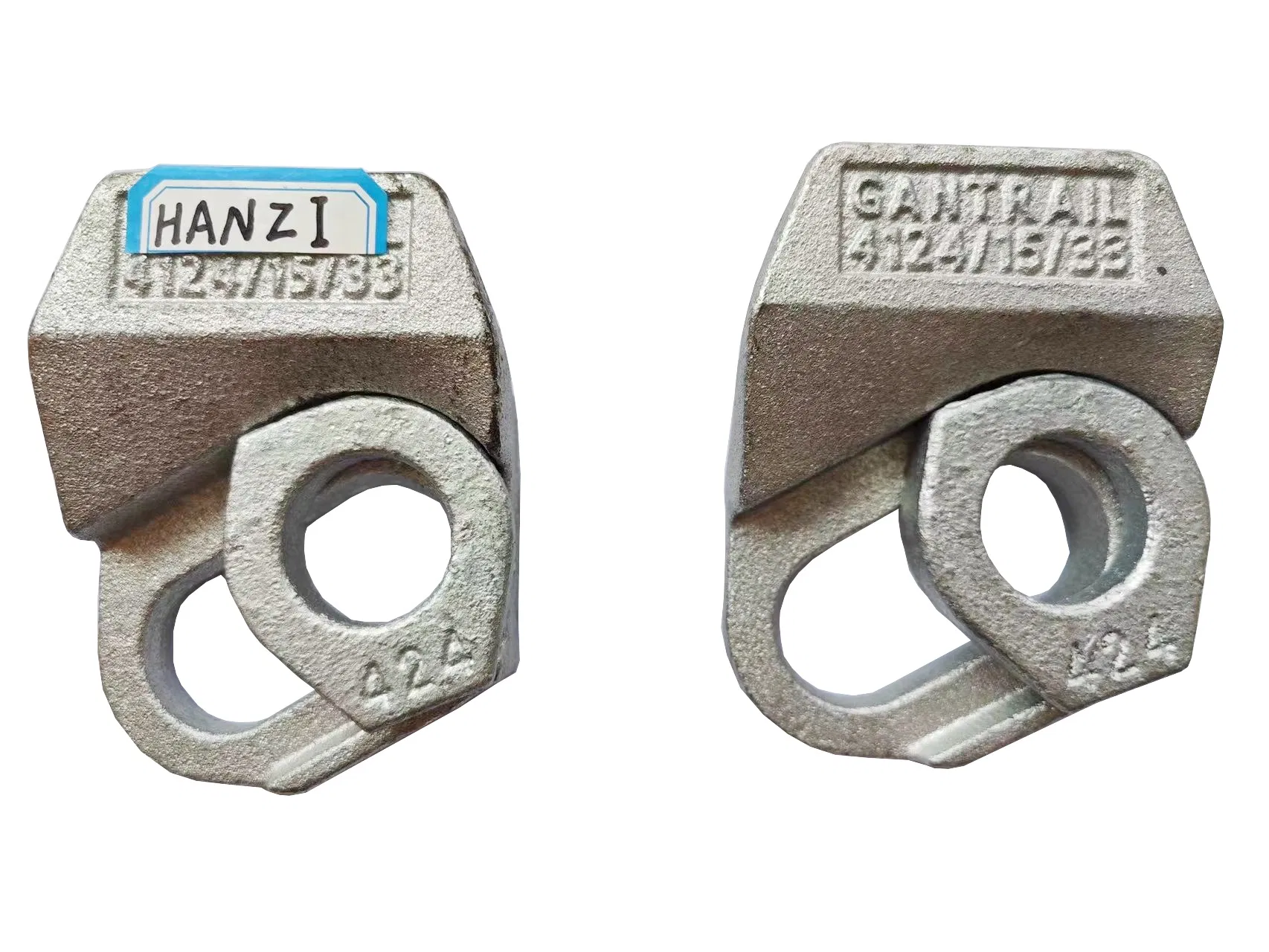

Weld-on Shoulders: Designed for special trackwork locations like switches, scales, and steel structures where standard tie plates cannot be used. These steel shoulders provide optimum lateral resistance and maximum clip-toe load.

📝

Product Parameters

Material	QT500-7	QT450-10	QT400-15
Tensile Strength	≥500 Mpa	≥450 Mpa	≥400 Mpa
Yield Strength	≥320 Mpa	≥310 Mpa	≥250 Mpa
Elongation	≥7	≥10	≥15
Hardness	170~230HB	160~210HB	130~180HB

📜

Certifications

🌍

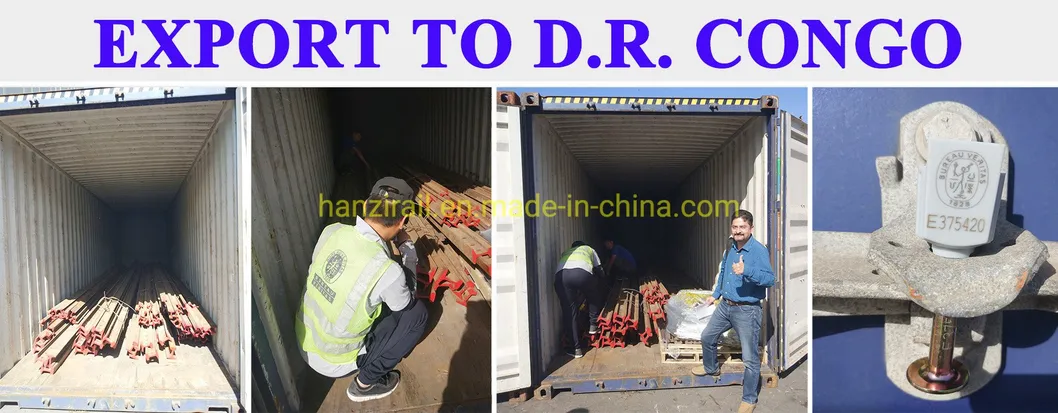

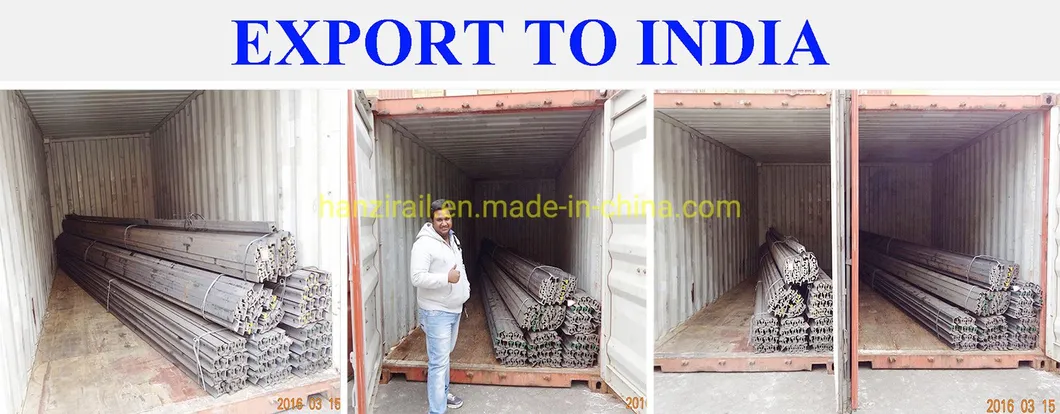

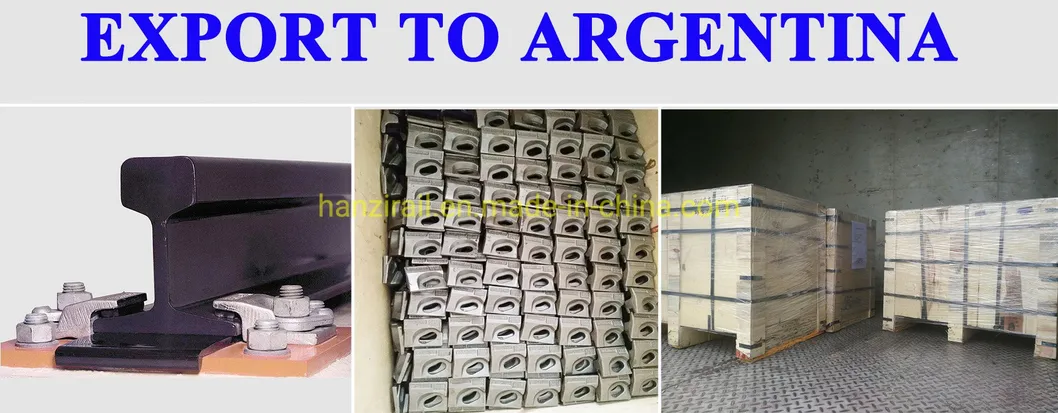

Exported Products

⭐

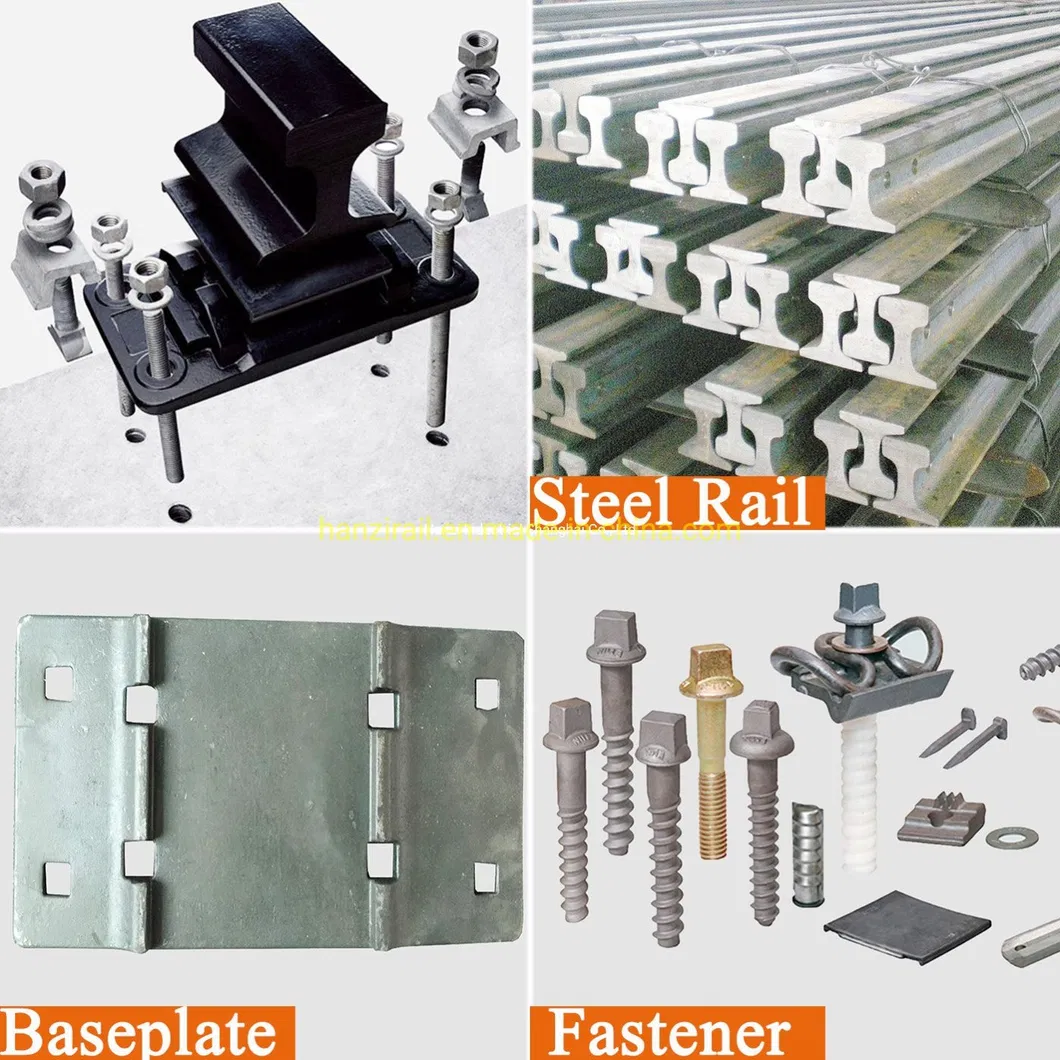

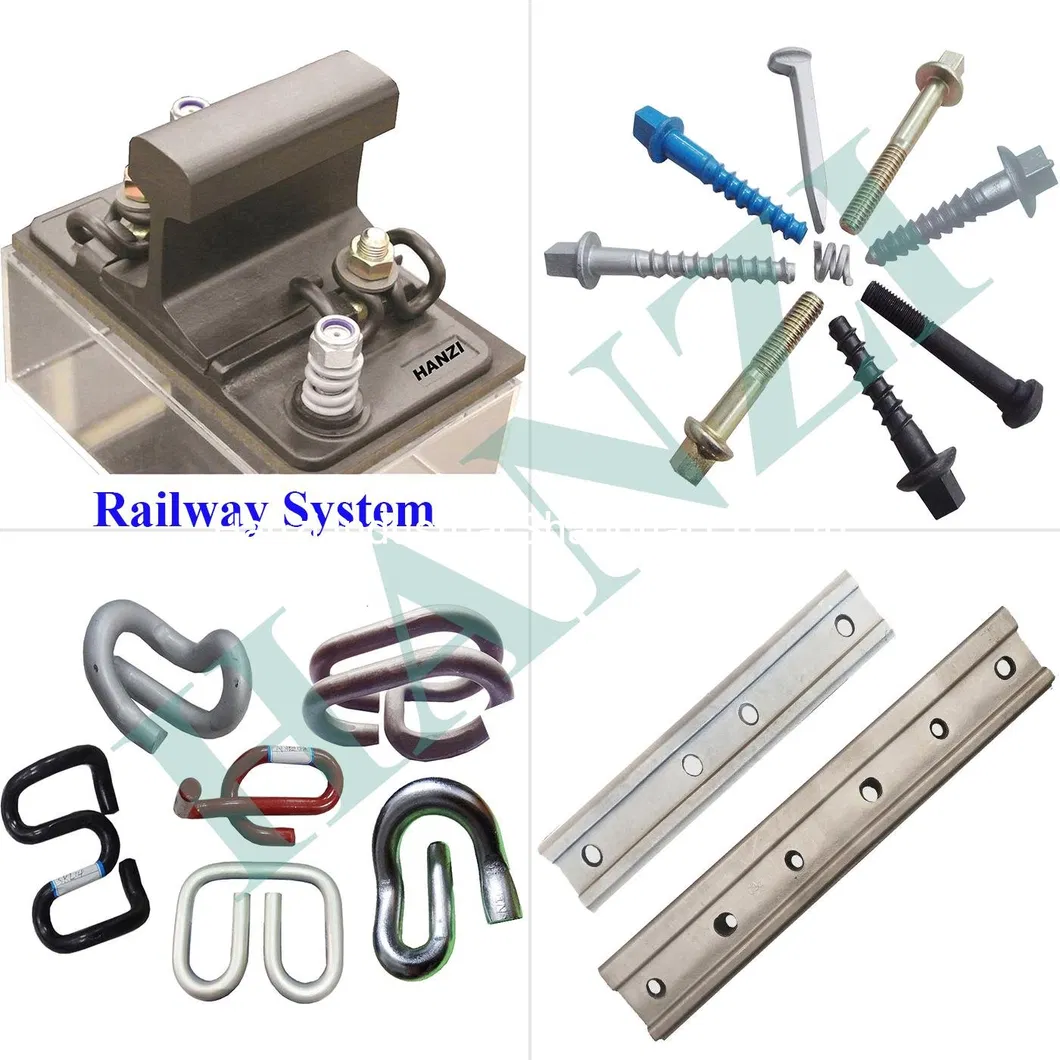

Recommend Products

📦

Packaging & Shipping

❓

Frequently Asked Questions

What is the main function of a rail shoulder?

Rail shoulders are used to secure elastic rail clips within a fastening system, providing lateral stability and maintaining the correct gauge of the railway track.

What materials are typically used for manufacturing rail shoulders?

Most rail shoulders are made from high-quality ductile iron, such as QT500-7, QT450-10, or QT400-15, ensuring high tensile strength and durability.

When should I use weld-on shoulders instead of cast-in ones?

Weld-on shoulders are ideal for special trackwork locations like switches or steel structures where standard concrete sleepers and pre-embedded shoulders cannot be applied.

Do you provide customized rail shoulders?

Yes, we support customization based on specific drawings or requirements for different rail sizes like 115RE, 136RE, UIC54, and UIC60.

What is your monthly production capacity for these products?

Our current production capacity reaches up to 500,000 pieces per month to meet large-scale infrastructure demands.

Are your products certified for international projects?

Yes, our manufacturing processes are ISO9001 certified, ensuring our products meet international quality standards for railway safety.
